The American Battery Boom is Real and Two Grids Are Doing Most of the work

CAISO and ERCOT hold two-thirds of U.S. battery capacity, face the same cannibalization risk, and are the only empirical roadmap the rest of the country has

The U.S. had 48 GW / 128 GWh of operating battery storage as of April 2026. Two grids account for two-thirds of it: CAISO (California) and ERCOT (Texas), each sitting at just under 16 GW.

This is not a projection. It already happened. The question worth asking now is what comes next, and whether the grid is actually built to use what it has and what may mean for the power market itself.

A Fleet That Did Not Exist Five Years Ago

Across the U.S., 48 GW / 128 GWh of battery capacity is operating today, with another 63 GW in the interconnection queue waiting to be built. By 2030, the EIA data points to 111 GW of total capacity if the queue clears. That is more than double what exists now.

Total capacity of currently operating batteries, April 2026, US. Source: EIA.

Two grids account for two-thirds of it: CAISO (California) and ERCOT (Texas). CAISO and ERCOT look similar in power output (MW) but are very different in energy capacity (MWh):

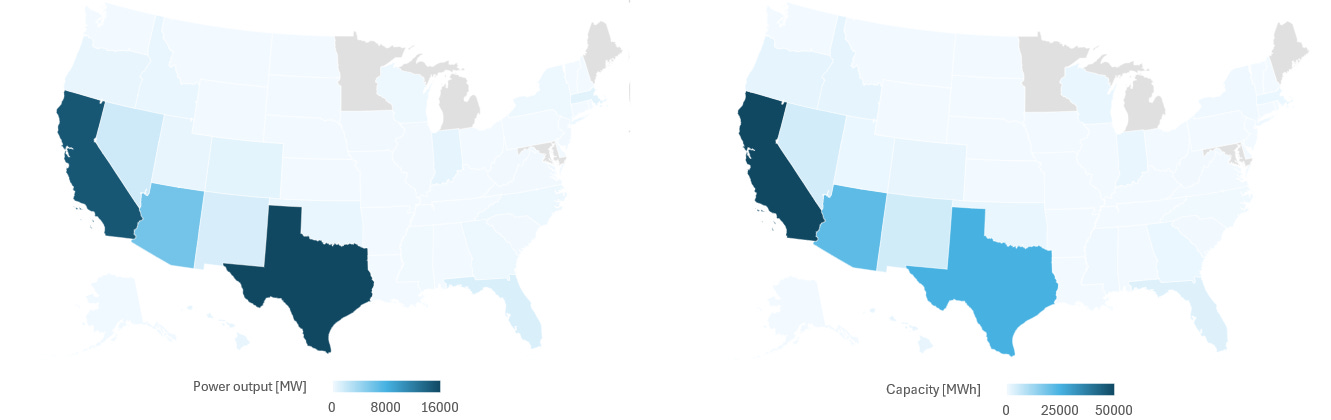

Power output vs. capacity of batteries across selected US states. Source: EIA.

CAISO’s 53.5 GWh of energy capacity means its batteries average about 3.4 hours of storage per MW of power output. ERCOT’s 24.7 GWh implies barely 1.5 hours per MW. California built long-duration assets early, driven by state procurement mandates. Texas built fast and cheap, prioritizing power output over duration.

Battery build-out. Source: EIA.

Monthly additions have been relentless. CAISO grew its fleet at roughly 5% per annum in the last five years, while ERCOT tracked closer to 7%. ERCOT added 10 GW of new capacity in the past year alone.

Battery build-out. Source: EIA.

The Queue: What Developers Are Betting On

The pipeline is where the story gets interesting. ERCOT’s interconnection queue holds 26.9 GW of batteries waiting to connect, nearly double CAISO’s 11.5 GW. ERCOT’s planned additions through 2030 total over 90 GW across all technologies, with batteries accounting for roughly 27 GW of that.

Pipeline of power assets. Source: EIA.

ERCOT's near-term pipeline dwarfs CAISO's. 9 GW of batteries in the remaining months of 2026, if they connect on schedule, would push ERCOT's fleet toward 25 GW by year-end. Historically, interconnection queues overstate what actually gets built, especially in the 2029–2030 years where numbers thin out sharply meaning that those outer years should be treated with appropriate caution.

Batteries vs. the Grid They Serve

Raw capacity numbers mean little without context. On a peak summer day, ERCOT’s load reaches around 85 GW. CAISO peaks at just above 40 GW. Against those benchmarks, what does the current battery fleet actually cover?

In ERCOT, 15.9 GW of batteries represents roughly 19% of peak demand in power terms. If storage duration stays at 1.5 hours, the fleet can shift about 24.7 GWh, equivalent to less than 30 minutes of full-grid supply at peak. That matters for evening ramps and short-duration frequency events. It does not replace firm capacity.

29th May 2026, ERCOT. Source: ERCOT.

In CAISO, for example, a May 11 dispatch day showed batteries discharging into the evening ramp while charging during the midday solar surplus, the classic duck-curve response. At 15.7 GW with 3.4-hour average duration, California’s fleet can genuinely cover a meaningful slice of the 5–10 PM stress window, roughly 5–6 hours at partial system load.

11th May 2026, CAISO. Source: OASIS.CAISO.

By 2030, if build-out proceeds, ERCOT’s 42.8 GW of batteries would cover about 50% of peak demand in summer. CAISO’s 27.2 GW would exceed 65% of its peak in summer days, while on an average day in late spring, it could cover its whole demand. Those numbers would represent a fundamentally different grid architecture.

Batteries vs. Each Other

Looking from another perspective, there may be a concern regarding potential cannibalization of batteries. In ERCOT, developers have filed for more than 13 GW of solar in the rest of 2026 alone, and just above 11 GW more in 2027. In CAISO, an almost equal amount of solar and batteries are queued for the same period. Both resources are chasing the same trade: solar floods the midday market, batteries buy cheap and sell into the evening ramp.

Looking at the growth curves side by side, the pattern is hard to miss. In CAISO particularly, solar and battery capacity are tracking each other almost in lockstep over the next few years, co-dependent in the same market logic and arriving together in the queue at nearly identical volumes through 2028.

Planned batteries and solar project by power output. Source: EIA.

The result, as CAISO experience already shows, is that they may economically undermine each other at scale. More solar deepens the midday trough and compresses the floor price batteries need to charge cheaply. More batteries competing to charge at the same hours bid that floor back up.

For consumers and regulators, this is the system working as intended. Compressed price spreads mean cheaper wholesale power. Lower volatility means fewer price spike events that used to translate directly into household bill surcharges and industrial curtailments. The duck curve, once California’s most-cited grid anxiety, is now being managed in real time by a fleet of batteries that did not exist three years ago. That is a genuine achievement, and worth stating plainly.

For investors, the same chart tells a more uncomfortable story. The arbitrage opportunity that made California batteries financially viable in 2022 and 2023 was a function of scarcity, both of storage capacity and of flexible response. As that scarcity disappears, so does the spread. A developer commissioning a standalone battery in ERCOT in 2027, into a market where 9 GW of peers and 13.3 GW of new solar arrived in the prior six months, will be bidding into a structurally narrower price window than the pro forma that justified the investment assumed. The CAISO trajectory does not guarantee the same outcome in Texas, but it is the only empirical roadmap the industry has.

Standalone, Co-located, and Hybrid

Finally, the fleet is not monolithic. Using plant and generator IDs from the EIA data, one can estimate three categories of batteries that behave very differently commercially and operationally.

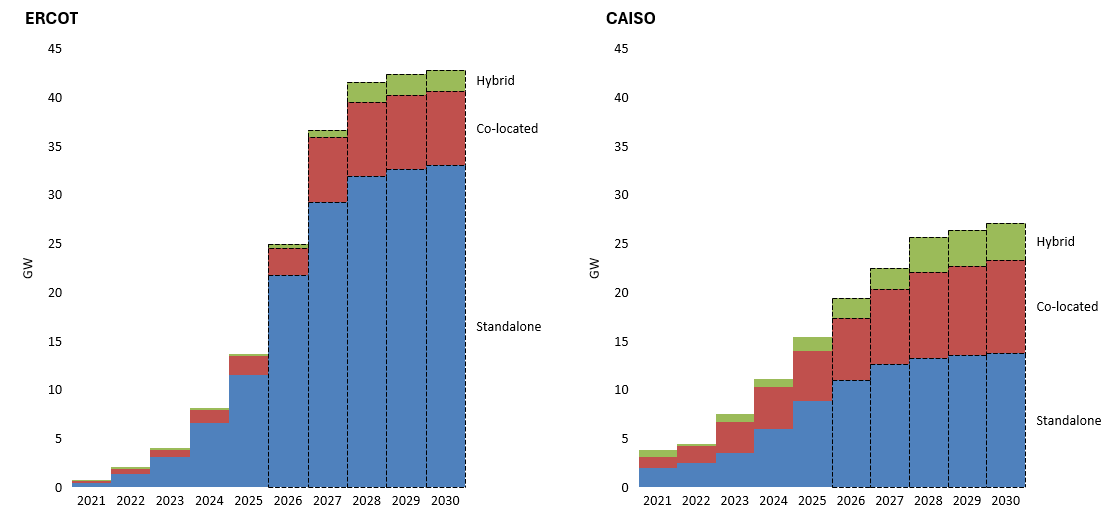

Estimated categories of batteries. Source: EIA.

Standalone batteries charge from the grid and discharge when prices are high or the system needs reserves. They can be pure merchant assets in ERCOT and often capacity-contract-backed in CAISO.

Co-located batteries usually sit physically next to a solar plant, sharing an interconnection point. They capture midday solar surplus and shift it to the evening ramp. As of early 2026, CAISO has slightly more than 5 GW of this type, reflecting its large solar base and the procurement rules that made co-located projects financially viable earlier. ERCOT’s co-located fleet is smaller at 2 GW, but growing fast in the queue data.

The third category, hybrid, covers batteries paired with a generator that share the same plant. Unlike co-located assets, where the battery and generator are registered and metered as one unit, hybrid resources are filed as separate generators at the same site. The operator controls how energy flows between the two components internally, giving more operational flexibility than a fully fused co-located registration.

A Final Thought

The U.S. battery fleet grew from near zero to 48 GW in roughly five years. California and Texas drove almost all of it, for different reasons and through different market structures, but arriving at nearly the same place in power terms. The grid is being reshaped in real time. Whether it is being reshaped in a way that sustains further investment is less clear. Compressed spreads serve consumers. They pressure the next wave of developers. Both things are true simultaneously, and the tension between them will define the economics of storage for the rest of the decade.

What remains open is whether the rest of the country follows. PJM, MISO, and the Southeast have the queue entries. They do not yet have the operating fleet. California and Texas built early, took the risk, and now provide the only real data on what works and what erodes. Whether that roadmap is enough to unlock the next 60 GW outside these two grids is the question this article has not answered, because nobody has yet.
